Construction

Site conditions are always hard. We know, construction is hard work…

What’s hard about it when you have Ford Trucks Construction Series?

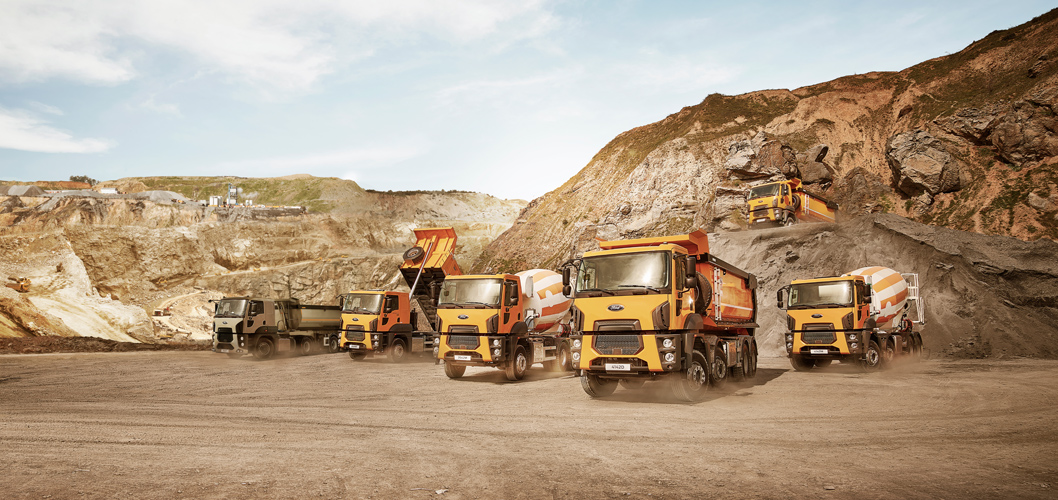

Construction Trucks should come through heaviest loads and accommodate itself to all fields of work. Which is why the construction truck should be Ford Trucks!

New Construction Series from Ford Trucks is equipped with new 13-liter Ecotorq engine offering excellent traction under hardest conditions. The engine brake, which is now standard, is ready to control the power whenever necessary. It delivers high level of comfort thanks to its automated transmission. High performance auxiliary brake Intarder maintains safety at the highest level.

Whatever you are looking for in 4-wheel drive tippers and mixers, whatever you are expecting from light construction series, with New Construction Series from Ford Trucks you will have more than you look for and expect.

1.
2.
3.
4.
5.
6.

Vehicles

1833DC
 1833DC Technical Specifications

Axle Configuration:

4x2

Emission:

Euro 3

Cabin Type:

Day Cab

Wheelbase:

4250 mm

Engine:

Ecotorq 9 liter

Engine Power:

330 PS (243 kW) @ 1900 rpm

Engine Torque:

1300 Nm @ 1200-1700 rpm

Transmission:

ZF 9S1310 - 9 Speed Manual (9,48 - 0.75)

Tires:

12 R 22,5

Service Brake:

430 x 45 - Disc Brake

Auxiliary Brakes:

Engine Brake (max. 180 kW )

Battery:

24 V, 2 x 12 V 180 Ah

Fuel Tank:

350 L Aluminium

* Box Body, Cargo Body With crane, Tanker, Tipper, Skip Loader, refuse compactor

---

3543D
 3543D Technical Specifications

Axle Configuration:

6x4

Emission:

Euro 3

Cabin Type:

Day Cab

Wheelbase:

3800 mm

Engine:

Ecotorq 12,7 liters

Engine Power:

430 PS (316,3 kW ) / 1800 rpm

Engine Torque:

2150 Nm / 1000-1300 rpm

Transmission:

Manual ZF 16S 2230 (13,805-0,836) 16 Speed
Automatic ZF 12 TX 2210 (16,688-1) 12 Speed

Tires:

315/80 R 22,5

Service Brake:

410 X 200, Z-Cam Brake System

Auxiliary Brakes:

Engine Brake (max. 340 kW ) (Engine Level)
Intarder (max. 600 kW) / continuous 160 kW

Battery:

24 V, 2 x 12 V 180 Ah

Fuel Tank:

315 L Steel

* Tipper, Tanker, Vaccum Tanker, Cargo body

---

4143D
  4143D Technical Specifications

Axle Configuration:

8x4

Emission:

Euro 3

Cabin Type:

Day Cab

Wheelbase:

5100 mm

Engine:

Ecotorq 12,7 liters

Engine Power:

430 PS (316,3 kW ) / 1800 rpm

Engine Torque:

2150 Nm / 1000-1300 rpm

Transmission:

ZF 16S 2230-16 Speed Manual (13,805-0.836)

ZF 12 TX 2210 -12 Speed Automated (16,688 -1)

Tires:

315/80 R 22,5

Service Brake:

410 X 200, Z-Cam Brake System

Auxiliary Brakes:

Engine Brake (max. 340 kW )
  Intarder (max. 600 kW)

Battery:

24 V, 2 x 12 V 180 Ah

Fuel Tank:

315 lt Steel

Tipper, Tanker, Mixer, Mesh body with Crane etc.

---

4143M
  4143M Technical Specifications

Axle Configuration:

8x4

Emission:

Euro 3

Cabin Type:

Day Cab

Wheelbase:

5100 mm

Engine:

Ecotorq 12,7 liters

Engine Power:

430 PS (316,3 kW ) / 1800 rpm

Engine Torque:

2150 Nm / 1000-1300 rpm

Transmission:

ZF 16S 2230-16 Speed Manual (13,805-0.836)

ZF 12 TX 2210 - 12 Speed Automated (16,688 -1)

Tires:

315/80 R 22,5

Service Brake:

410 mm x 200 mm Z-Cam Brake System

Auxiliary Brakes:

Engine Brake (max. 340 kW )
  Intarder (max. 600 kW)

Battery:

24V, 2 x 12V 180 Ah

Fuel Tank:

315 lt Steel

* Tipper, Tanker, Mixer, Mesh body with Crane etc.

---

4143P
  4143P Technical Specifications

Axle Configuration:

8x4

Emission:

Euro 3

Cabin Type:

Day Cab

Wheelbase:

5100 mm

Engine:

Ecotorq 12,7 liters

Engine Power:

430 PS (316,3 kW ) / 1800 rpm

Engine Torque:

2150 Nm / 1000-1300 rpm

Transmission:

ZF 16S 2230-16 Speed Manual (13,805-0.836)

Tires:

315/80 R 22,5

Service Brake:

410 mm x 200 mm Z-Cam Brake System

Auxiliary Brakes:

Engine Brake (max. 340 kW )
  Intarder (max. 600 kW)

Battery:

24V, 2 x 12V 180 Ah

Fuel Tank:

250 lt Steel

* Tipper, Tanker, Mixer, Mesh body with Crane,Flat bed, Concrete pump etc.
